ASP.MVC 6 Features - wwwroot folder

Whenever we web develop applications in .NET framework the root directory of the website has always been the directory where our project is located. All our C# source files, html pages, js files, aspx pages, cshtml files all reside under this root. The file system based approach has got many disadvantages especially when it comes to protecting sensitive project resources. Normally people used black listing to lock out access to files such as Global.asax and web.config being served to the clients as response and this was being done at framework level. It is always advisable to use whitelisting technique rather than using a blacklisting method from a security perspective.

Also we will have different version of the same file say web.config for developement , testing, staging and production. And coming to scripts files we normally use the readable version of the files during development, but when it goes to the production we deploys only the minified version of it. Handling of these scenarios were getting difficult with each version and that's how the structure was devised for web projects in MVC 6

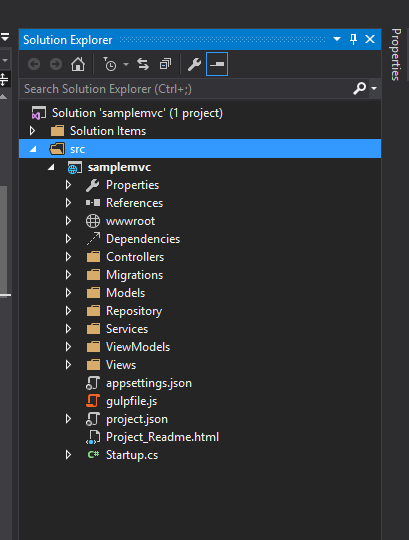

By default the wwwroot folder will act as the root for your website and all the static files such as images, scripts, styles will reside in this folder. And the sensitive files like project.json, appsettings.json etc are not under wwwroot folder and will never be accessible if our site is compromised. Thus instead of blacklisting, we are giving access only to those files which are accessible.

ASP.MVC 6 Features - Managing Packages

As developers, one of the thing we do frequently is adding references in the project. All these added dll's are listed under the References folder. Also listed are the libraries added by NuGet package manager used in C# code. These are called server side dependencies and is used in server side coding part.

Since it's now possible to target multiple frameworks, the refernces are now grouped under References folder based on the targeted environments.

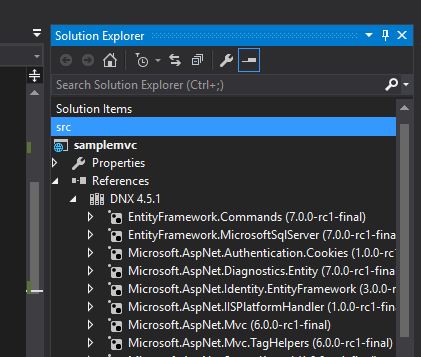

By default, it will list two items under References, DNX 4.5.1 is targeting .NET framework 4.5 and DNX Core 5.0 is targetting .NET Core framework. If you expand it, then all referenced dll's will be listed.

If you look closely the icons for the references, you can see that it's having the icon of Nuget. It indicates that these are all NuGet packages and if you manually added a dll, then it will have a different icon.

Apart from these we will making use of different types of client side libraries like jQuery, Kendo, Angular etc. In MVC 6 all of it are placed under the dependencies folder. Managing client side frameworks is more tedious when compared to the server side cousins and two of the great names in open source package management is now supported in MVC 6. Bower and npm packages will be listed under the Dependencies

ASP.MVC 6 Features - In Memory Execution

In one of the earlier post we have seen that in MVC 6 it's now possible to do edit-and-continue very much like what we do while developing a desktop application

Similarly, another important feature shipped with MVC 6 is the ability to do in memory compilation of the code. That means while building the application, output is generated in the bin folder and the web server load the files from there to run the application. But in MVC 6 this is turned of  by default and the files are compiled and stored in memory. One advantage of doing this is that it reduces the start up time considerably since there is very little time spent on disk I/O operations.

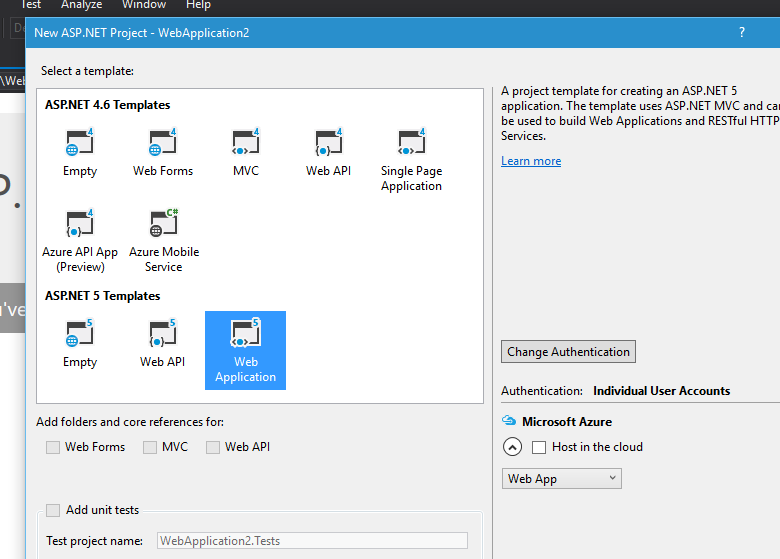

Let's create a sample MVC 6 web project by selecting the Web Application template under ASP.NET 5 from Visual Studio.

Visual Studio will create MVC project with model, controllers and views out of the box and you will get a barebone site without writing a single line of code.

ASP.MVC 6 Features - Dependency Injection Modes

In the earlier post, I have shown how to make use of the built in Dependency Injection container in MVC 6. If you missed that you can go through it here. In that post I have explained about the Instance scope and here we will see the remaining modes.

To recap the AddInstance method will always return a new instance

 services.AddInstance(new SampleRepository());

Transient is another one for specifying the scope of our instance during the object creation by DI container. By specifying it, we are instructing the container for creating a new instance whenever there is a request. The main difference between Instance and Transient methods is that in former it's our responsibility to create the instance where as it's upto the container in the latter

  services.AddTransient<ISampleRepository,SampleRepository>();

ASP.MVC 6 Features - Dependency Injection

In the version prior to MVC 6 it's possible to do Dependency Injection(DI) using third party libraries like AutoFac. But in MVC 6, DI is built into right into the framework. All the libraries like MVC, WebAPI, SignalR are making use of this minimalistic DI container. The core features of the container are exposed through the IServiceProvider interface and since it's available and same for all the components of the framework, a single dependency can be resolved from any part of the application.

Let's see an example of DI in action in MVC 6

First of all I'm going to create an interface and concrete class for a repository to deal with the domain entity.

Interface

namespace samplemvc.Repository
{
    public interface ISampleRepository
    {
        string GetMessage();

    }
}

Implementation

namespace samplemvc.Repository
{
    public class SampleRepository : ISampleRepository
    {
        public string GetMessage()
        {
            return GetHashCode().ToString();
        }
    }
}

ASP.MVC 6 Features - Managing Dependencies

In MVC 6, Microsoft has completely revamped the logic for for adding and managing dependencies in the application. They have now introduced a file called Project.json for organizing dependencies. This new file is not only used for managing dependencies but also for other options such as compilation settings, managing runtime frameworks, adding postbuild/prebuild scripts etc.

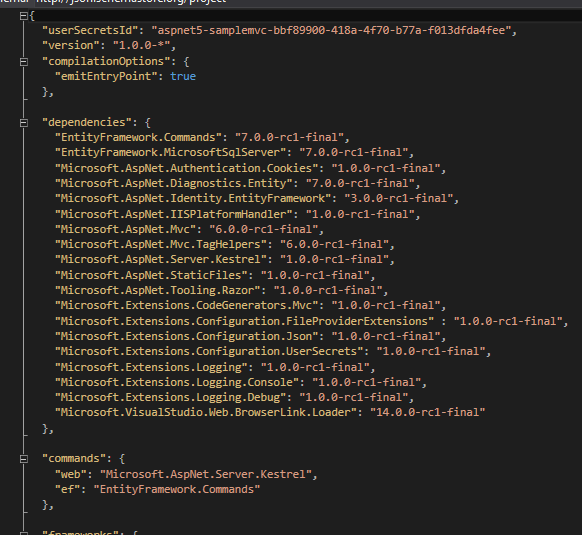

As the name indicates the information is stored in JSON format as shown below

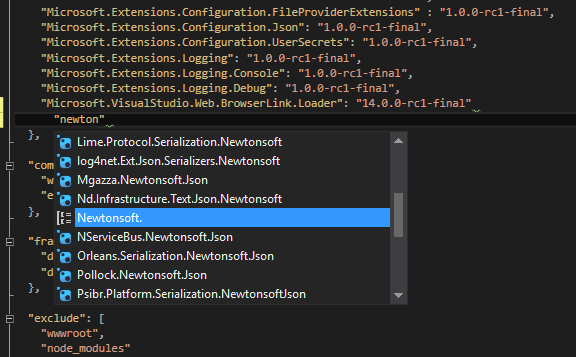

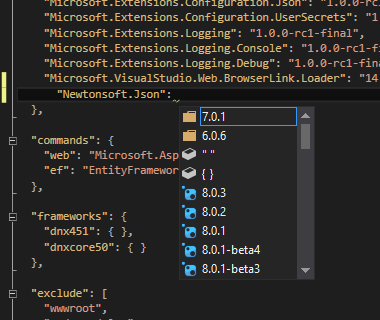

Intellisense is available inside the json file also which makes the task of adding new ones easier. It's not only limited to names but also for version numbers too. Here also note that the icon represents the type of the package that's going to added.

ASP.MVC 6 Features - Dynamic Compilation

Dynamic developement is a new feature supported by Visual Studio 2015 which comes in very handy while creating web apps using MVC 6. Whenever we made any change in the server side code, then we needed to stop debugging, compile the code again and runs it again to view the modified the code in action. This is very tedious job if we are try to debug a large application and wanted to make a slight change. The Edit-and-Continue is present while developing desktop apps since ages and with Visual Studio 2015 it's coming to web applications also.

With Visual Studio 2015, you can forget all these, just make the change in the C# code, save it, refresh the browser and voila the change is reflected in the page. This is achieved by make using of the dynamic compilation facility provided by Roslyn to compile the code automatically when we saves the file. One thing to note here is that you should start your session without debugging from Visual Studio by selecting  Start Without Debugging from Debug menu or use the keyboard shortcut Ctrl + F5

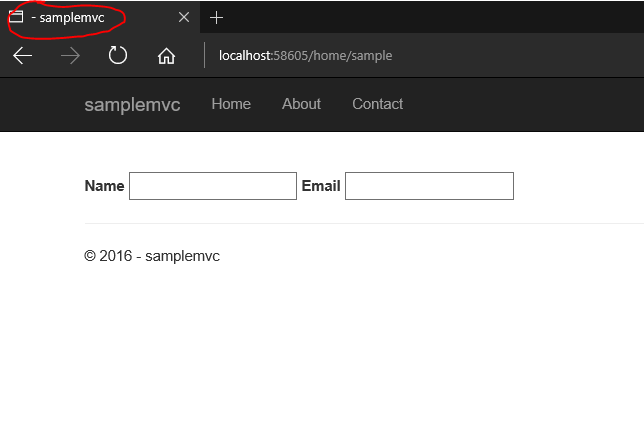

Let's see an example, in this we have two fields in our page but doesn't have any header in the page or title.

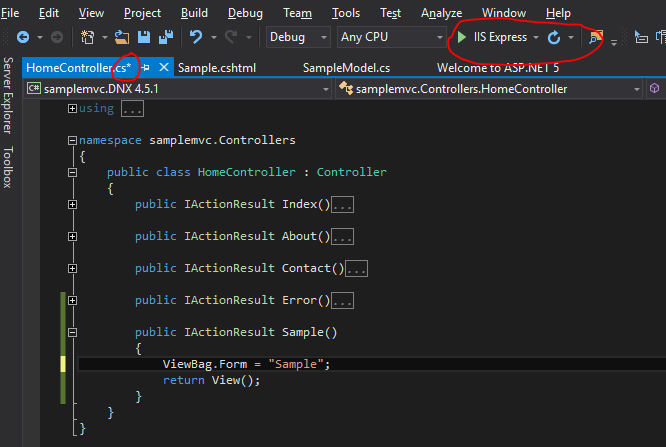

So let's make the change while running the application itself. Modified the controller to add a property in the ViewBag to store the title and save the changes. You can see that I have started the session without attaching the debugger and it's an important step if you want to try out this feature

After saving the file go and modify your cshtml to add a new heading to show the title and also set the ViewBag.Title property which is used in your layout page to show the title.

ASP.MVC 6 Features - All New Tag Helpers

We are using HTML helpers in our view pages extensively while building apps in MVC untill now. The main disadavantage of this is that it follows server side syntax and it's mix and match with html code in the page. It makes the maintainablity a tedious one and also readablity is affected.

@Html.Label("Name","Name")

In ASP.NET MVC 6 we have the tag helpers which helps you achieve the same thing but this time we are writing using the HTML markup. So the equivalent code for above statment in MVC 6 will be

<label asp-for="Name"></label>

will generate the following HTML when rendered in browser

<label for="Email">Email</label>

Here the asp-for attributes extracts the display name attribute from the specified model property and displays it as the label for the control.

Let's add a class to the above control and see the difference between HTML Helpers and Tag Helpers

HTML Helper

@Html.Label("Name","Name", new {@class="label-caption"})

Tag Helper

<label class ="label-caption" asp-for="Email">Email</label>

Generated HTML

<input name="Name" class="label-caption" id="Name" type="text" value="">
